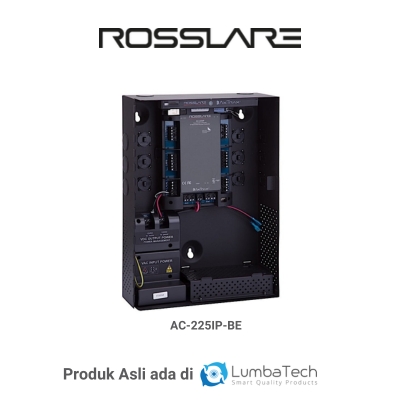

Rosslare AC-225IP-BE | Networked Access Controller
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Rosslare AC-225IP-BE is one of the networked control panels from Rosslare that has proven its reliability in the market. With support from the Rosslare AxTraxPro access management platform, the AC-225IP-BE controller allows for automated physical access policy settings across various facilities.
Features & Integration
- Pollable online and offline
- Supports up to 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128 time zones, 64 holidays, and 32 Smart Links for automation
- Can record 20,000 event log data (non-volatile and First In First Out) when offline
- Can be expanded with MD-IO84B I/O expansion module for additional 8 inputs, 4 outputs or MDD02B 2-Reader module with 4 inputs, 4 outputs
- Real-time clock with super-capacitor holds power and keeps RTC real-time clock for up to 24 hours in case of total power loss (no batteries required)
- Supports various types of Wiegand readers, keypad PIN, and logic options to support a variety of keys, deadbolts, electric strikes, electronic locks, and sliding doors
Specifications
| Serial Port 10/100 Ethernet Port (AC-225IP version). RS-485 Port, 4-wire G-Bus?; RS-232 Port | 4-Wire Standard RS-232 |
|---|---|
| Inputs 4 supervised, hi-impedance, inputs; Max. voltage | 5 VDC |
| Reader Port 2 reader ports (6-wire); Power | 12 V, 300 mA each; Data: Wiegand Clock & Data; Input/Output: LED control, tamper input |
