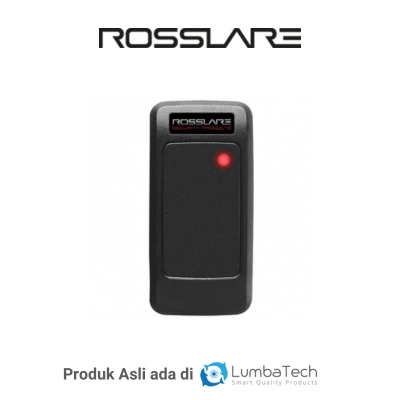

Rosslare AY-K5 | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Rosslare AY-K5 is a reader for the 13.56 MHz frequency that can read ID cards, tags, and credentials based on the non-contact card technology MIFARE Classic EV1. The Rosslare AY-K5 reads the Unique ID (UID) from the credential and transfers it via Wiegand data 26-40 bits to the access control panel.
Features & Integration
- Read range of up to 65 mm (2.6 in.) depending on the card type
- Supports standard Wiegand 26-40 Bit
- Made of tough polycarbonate plastic for improved performance in all indoor weather conditions
- Developed for cost-effective market
- Bi-colored LED and LED control input
- Internal buzzer
Specifications
| Standby | 45 mA @ 12 VDC |
|---|---|
| Max | 100 mA @ 12 VDC |
| Selectable transmission formats | Wiegand 26-Bit w/site code, Fixed 26-bit, |
| AY-K5 | 6 cm (2.4 in.) |
| Operating frequency | 13.56 MHz |
| Compatible cards | MIFARE Classic EV1 compatible ISO-14443A |
