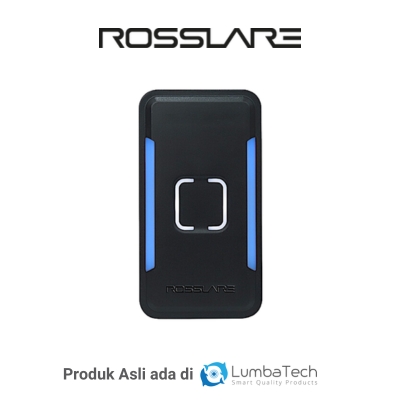

Rosslare AY-K35 | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Rosslare AY-K35 Multi-Smart™ Readers is a multi-functional reader that supports various credential types, including BLE (Bluetooth Low Energy), NFC, 125 kHz and 13.56 MHz RFID. The Rosslare AY-K35 Multi-Smart™ Readers are ideal for flexible access control installations that want to leverage the latest mobility convenience and flexibility.Rosslare AY-K35 Multi-Smart™ Readers is suitable for environments requiring multiple RFID credential readers or using multiple CSN Select credential readers.
Features & Integration
- Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with an extended range, up to 32 addresses
- Fully programmable using Rosslare BLE-Admin app
- Touch button for different functions
- IP68 water and dust resistant, IK09 vandal resistant
- Antimicrobial technology reduces level of microbes on reader by up to 99.8%
- Easy installation in all environments with the included mounting template and installation kit
Specifications
| Maximum | 300 mA @ 12 VDC |
|---|---|
| Contactless | 13.56 MHz: 5 cm (1.97 in.), 125 kHz: 8 cm (20.32 in.) |
| 10 mA@5 VDC. Current limit | 500 ? series resistance |
| 13.56MHz | ISO14443A (UID): MIFARE ® Classic ® EV1: Sector Read, MIFARE ® Ultralight ® |
| ISO18092 (UID) | SONY ® FeliCa ® |
