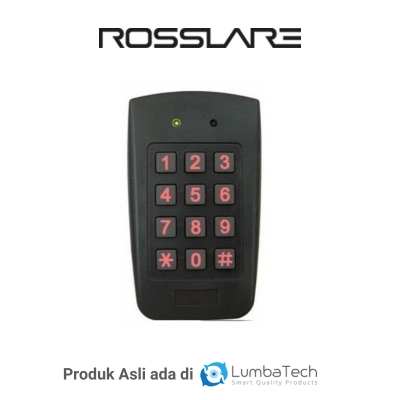

Rosslare AC-F44 | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Rosslare AC-F44 Outdoor Backlit PIN & PROX Standalone Controller is a cost-effective security solution for both indoor and outdoor applications where credentials required are PIN and/or proximity cards. The Rosslare AC-F44 Outdoor Backlit PIN & PROX Standalone Controller can be easily programmed and supports up to 500 users.
Features & Integration
- Three user levels:
- ? Normal – Requires single PIN code or PROX card
- ? Secure – Requires both PIN and PROX card
- ? Master User
- Three access levels:
- ? Normal
Specifications
| Standby | 95 mA at 12 VDC |
|---|---|
| Maximum | 160 mA at 12 VDC |
| Lock Strike | 2 A Form C, N.O. and N.C. |
| Auxiliary | 2 A Form C, N.O. and N.C. |
| REX | N.O. Dry Contact |
| Auxiliary (In/Monitor) | N.O. Dry Contact. 10 Programmable modes |
| Maximum read range* | 75 mm (2.95 in.) |
| Modulation | ASK at 125 kHz |
| Compatible cards | All 26-Bit EM Cards |
