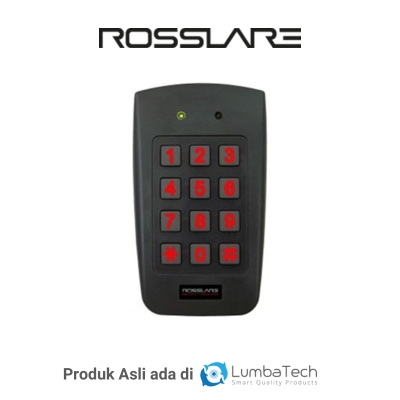

Rosslare AYC-F64 | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Rosslare AYC-F64 is part of the Rosslare reader/controller series and can be converted. The AYC-F64 keypad can operate as an outdoor keypad with backlight keypad & reader proximity, connected to any standard controller or converted into a standalone controller with full features.
Features & Integration
- Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, highly-visible RED backlit keypad
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User friendly menu based on keypad, LED, and sounder indicators
- Back and cover optical tamper detection and output
Specifications
| Reader mode | 5 to 16 VDC from a standard controller |
|---|---|
| Controller mode | PS-x25T series intelligent power supplies |
| Standby | 105 mA at 12 VDC |
| Maximum | 140 mA at 16 VDC |
| Maximum read range* | 80 mm (3.2 in.) |
| Modulation | ASK at 125 kHz |
| Compatible cards | All 26-Bit EM cards |
