System Integrator Security System
Rosslare

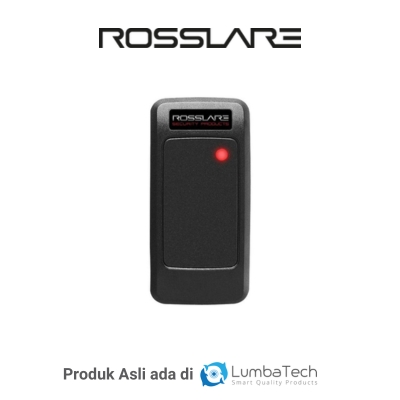

Rosslare AY-K12 | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Reader AY-K12 dari Rosslare merupakan seri pembaca kartu jarak dekat RFID yang sangat kuat dan dapat diandalkan. Dirancang khusus untuk kartu dan tag EM 4102 berfrekuensi 125 kHz, pembaca ini memberikan keandalan dan keamanan dalam mengakses area terbatas.
Features & Integration
- Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
- Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
- Wide range operating voltage: 5 to 16 VDC 45 cm (18 in.) pigtail cable
- RF Modulation: ASK at 125 kHz
- Internal sounder with external control option
- Tri-color LED with external control inputs
Specifications
| Maximum read range* | 8 cm (3.2 in.) to 10 cm (3.9 in.) |
|---|---|
| Modulation | ASK at 125 kHz |
| Compatible cards | 26-Bit EM cards |
