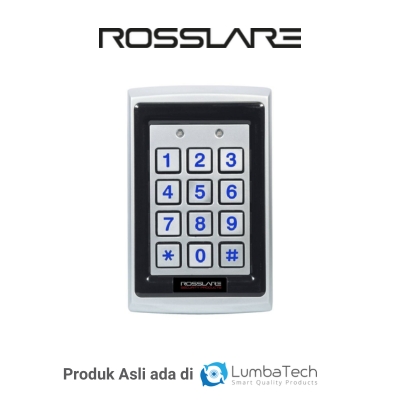

Rosslare AYC-Q64B | Access Control Reader
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
As part of the Rosslare convertible reader/controller line, the Rosslare AYC-Q64B can be operated as an outdoor reader with a backlit keypad and proximity reader connected to any standard controller, or it can be converted into a standalone controller with full features for 500 users when connected to the PS-x25T power supply/digital relay unit from Rosslare. The AYC-Q64B provides the most effective solution for both indoor and outdoor access systems where PIN & proximity credentials are required.
Features & Integration
- Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible blue backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User friendly menu, based on keypad, LED and sounder indicators.
- Back and cover optical tamper detection and output.
Specifications
| Reader mode | 5 to 16 VDC from a standard controller |
|---|---|
| Controller mode | PS-x25T series intelligent power supplies |
| Standby | 90 mA at 12 VDC |
| Maximum | 130 mA at 16 VDC |
| Maximum read range* | 45 mm (1.8 in.) |
| Modulation | ASK at 125 kHz |
| Compatible cards | All 26-Bit EM cards |
