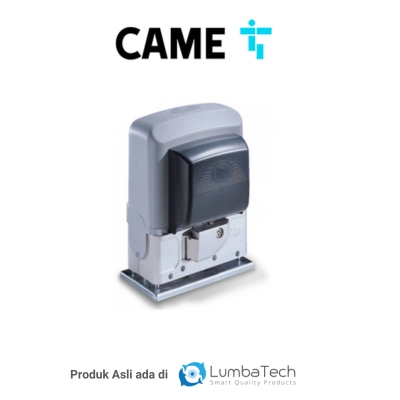

CAME BK 1800 | Sliding Gate
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Halo Sahabat Lumbatech! Pada kesempatan kali ini, Lumbatech ingin memperkenalkan produk dari CAME yaitu CAME BK 1800.CAME BK 1800 adalah sliding gate otomatis yang sangat cocok untuk menggeser gerbang geser berat dengan beban hingga 2.200 kg (4.500 lb) dan panjang maksimal 20 meter, dikarenakan motor AC 230 volt yang digunakan.Gerakan CAME BK 1800 sangat halus dan sesuai untuk penggunaan dengan intensitas tinggi di area pabrik, kawasan industri, atau lokasi lain dengan gerbang besar.
Features & Integration
- Available with a 4 or 6 pinion module.
- Control panel with terminal blocks, display, and storage capable of holding up to 250 users.
- Self-diagnosing security devices.
- Ready for magnetic switch installation.
- Plug-in connector for RIOCN8WS, R700, R800, RSE, and AF card readers.
- CAME BK 1800 can be set up to connect to the Rio wireless security system.
Specifications
| Protection rating (IP) | 54 |
|---|---|
| Power supply (V 50/60 Hz) | 230 AC |
| Power supply to motor (V - 50/60 Hz) | 230 AC |
| Draw (A) | 5.1 |
| Power (W) | 580 |
| Opening time (m/min) / (ft/min) | 10.5/34.5 |
| Duty cycle (%) | 50 |
| Thrust (N) | 1500 |
| Operating temperature (°C/°F) | -20 ÷ +55 - -4 ÷ +131 |
| Motor's heat protection (°C/°F) | 150/302 |
