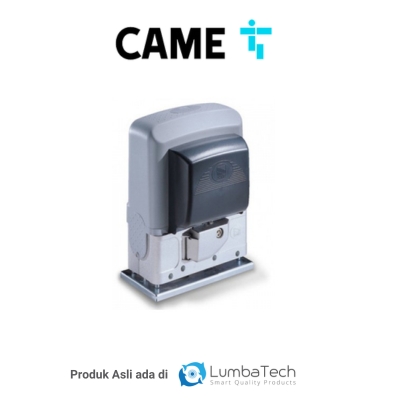

CAME BK 2200 | Sliding Gate
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Hello Sahabat Lumba! On this occasion, Lumbatech would like to introduce a product from CAME, namely the CAME BK 2200.The CAME BK 2
Features & Integration
- Available with Module 4 or 6 pinion
- Control board with terminal blocks, display, and storage that can accommodate up to 250 users.
- Safety devices capable of self-diagnosis
- Ready for magnetic limit switch installation.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
- Plug-in connector for RIOCN8WS, R700, R800, RSE, and AF receiver cards.
Specifications
| Protection rating (IP) | 54 |
|---|---|
| Power supply (V 50/60 Hz) | 230 AC |
| Power supply to motor (V - 50/60 Hz) | 230 AC |
| Draw (A) | 5.1 |
| Power (W) | 580 |
| Opening time (m/min) / (ft/min) | 10.5/34.5 |
| Duty cycle (%) | 50 |
| Thrust (N) | 1500 |
| Operating temperature (°C/°F) | -20 ÷ +55 - -4 ÷ +131 |
| Motor's heat protection (°C/°F) | 150/302 |
