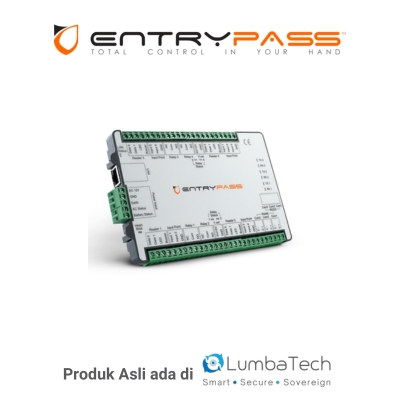

ENTRYPASS N6230 Access Controller | Active Network Control Panel

Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.

Mobile
ENTRYPASS N6230 Access Controller | Active Network Control Panel

Product Summary

Entrypass N6230 is one of Entrypass's top-tier network controller products. It offers numerous features and advantages, making it an excellent choice for enhancing your network access control.ACTIVE TRANSMITIn contrast to traditional methods that store event data within the memory and wait for a host-PC to inspect them, Entrypass N6230 adopts a more proactive approach.

Features & Integration

  • Configurable Digital / Supervised Inputs (8)
  • Unlimited Access Level
  • Support Single Door / 2 Doors / 4-In Doors
  • Onboard & Cross-Board Interlocking
  • User Counting (Card Holder / Car Park)
  • Support Dynamic Reader Location

Specifications

Dimension170mm x 110mm (board only)
MCUFreescale ColdFire 32bits@60MHz
Memory256K Flash Memory · 32K SRAM (Buffer) · 64Mbits Non-Volatile SPI Flash Memory (Storage) · 2GB MicroSD Card(Secondary Storage)
Number of Reader SupportN6230 - 2-In Doors Mode - Single In reader per doo
Card System< 30 digit (Structure Ready) Singapore Easylink/SSID Ready
Operating Power12vDC@3A
Operating Temperature0 &deg;C to 40 &deg;C
Card Holder100,000
Event Transaction200,000
Access LevelUnlimited Access Level · Digital/Supervise Inputs · Max 8, User configurable · (Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital OutputMax. 4 Dry contact Relay
Network Communication Port10/100Mbps RJ-45 TCP/IP
Power ProtectionResettable Fuse - 2.5A
Surge ProtectionTVS - Up to 15KVA
