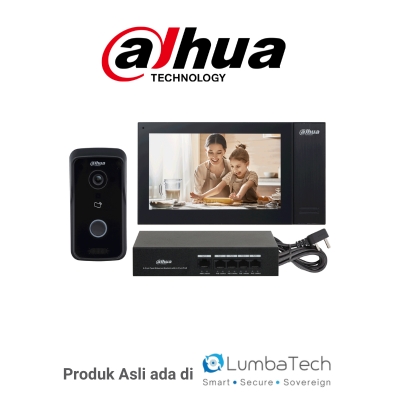

Dahua DHI-KTP02 | Video Intercom
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Lumbatech always provides the best for your home security! We sell Dahua's video intercom model DHI-KTP02.
Features & Integration
- IP Villa Door Station
- High definition camera; WDR
- Operating temperature -30°C to 60°C
- IP65 (Silicone sealant is needed. For details, see the quick start guide.)
- Supports auto IR illumination and D/N
- Card/app remote/indoor monitor unlock
Specifications
| Main Processor | Embedded processor |
|---|---|
| Operating System | Embedded LINUX operating system |
| Button Type | Mechanical |
| Interoperability | ONVIF |
| Internet Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Camera | 1/4" 1MP CMOS high definition, low illumination/ |
| Angle of View | WDR, color/IR |
| WDR | Horizontal: 107°; vertical: 61°; diagonal: 122° |
| Noise Reduction | 120 dB 3D noise reduction |
| Video Compression | H.264 |
| Video Resolution | Main stream: WVGA, 720P, D1; Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
| Frame Rate | PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 256 K to 4 M |
| Light Compensation | Auto IR |
