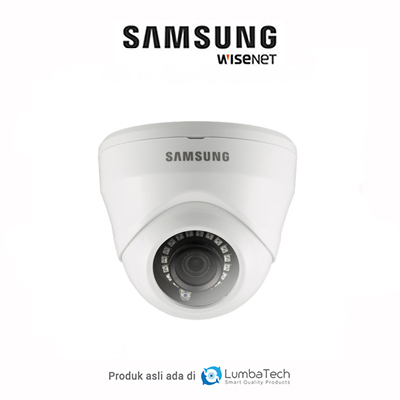

CCTV Dome Samsung Wisenet HCD-E6020R (2.0 MP)
Ready to integrate into your physical security ecosystem — installation, commissioning, and maintenance by the Lumbatech team.
Product Summary
Security is a primary need for everyone. Professional installation by reliable Lumbatech installers ensures your private property and business premises remain secure with 24-hour CCTV surveillance.
Features & Integration
- HD Camera CCTV Samsung HCD-E6020R (2.0 MP)
- Full HD 2.0 MP (1920 x 1080) Resolution
- B/W : 0Lux (Auto IR LED on) @F1.4
- 2.8 ~ 12 MM (4.3x) Varifocal Lens
- Day & Night (ICR), DWDR, Motion Detection
- IR Viewable Length 20 M
Specifications
| Image Sensor | 1/2.7" 2M CMOS |
|---|---|
| Total Pixels | 1,952(H) x 1,092(V) |
| Effective Pixels | 1,920(H) x 1,080(V) |
| Scanning System | Progressive scan |
| Min.Illumination | Color : 0.25Lux (F2.1) B/W : 0Lux (IR LED on) |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC (AHD, CVBS selectable) |
| Resolution | 1920 x 1080 |
| Max. Framerate | 30fps@1080p, 30fps@720p |
| Focal length | 4mm fixed |
| Max. Aperture Ratio | F2.1 |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Manual |
| Lens Type | Fixed |
