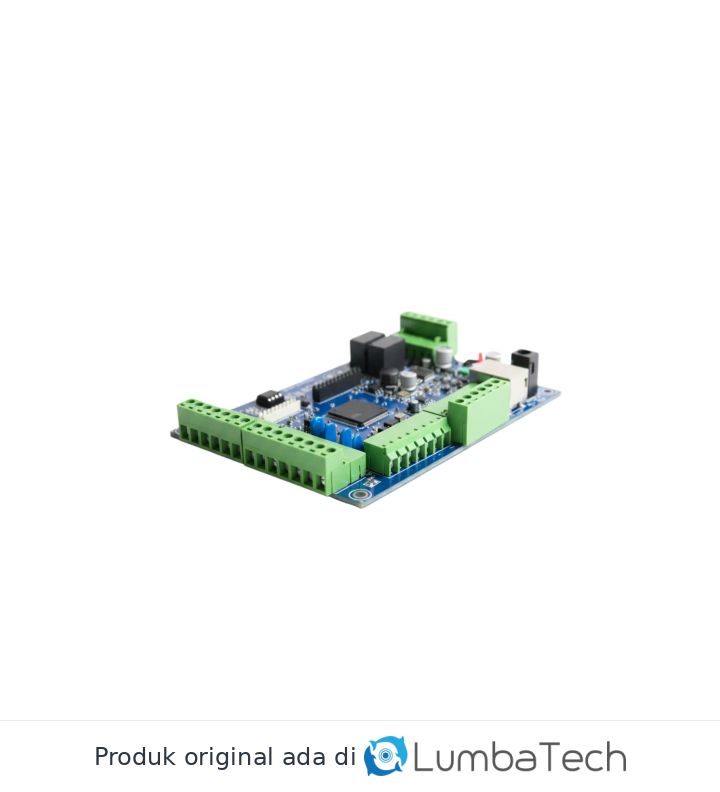

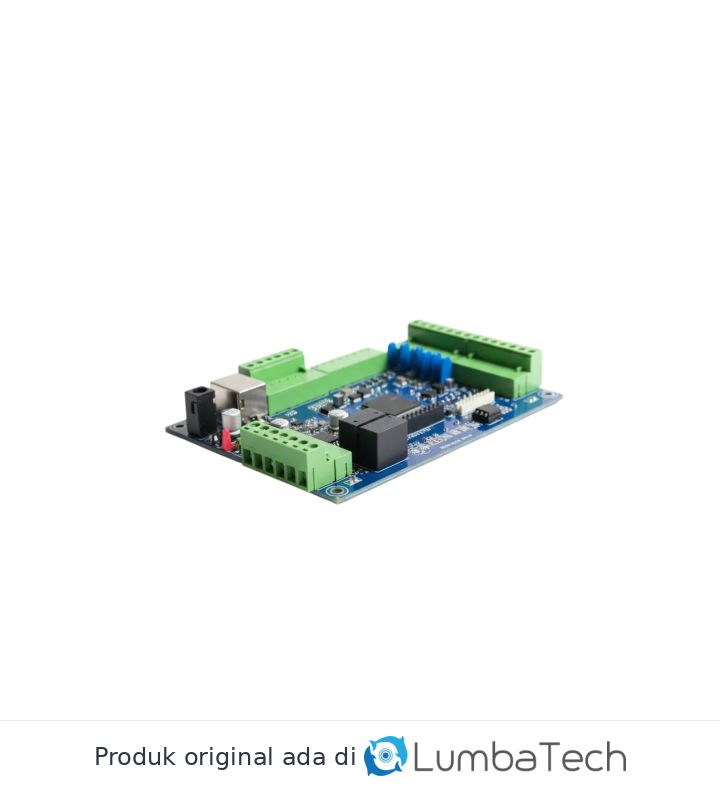

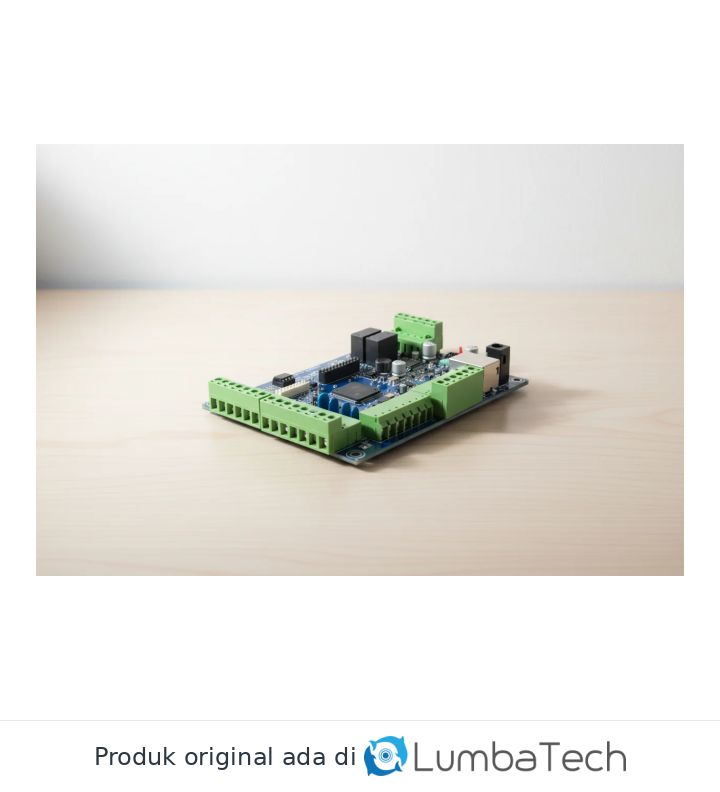

S32 IP Controller
S32 IP Controller
Share:
Deskripsi
Advanced IP controller with edge intelligence and secure communication. Features modular design for flexible deployment and direct integration with VAULT Central platform. Available in 1-door and 2-door configurations.
Fitur
- Native IP connectivity with secure encrypted communication
- Edge intelligence for autonomous operation during network outage
- Supports Wiegand 26-37 bit and OSDP reader protocols
- Modular PCB design for flexible mounting options
- Built-in tamper detection and monitoring
- Real-time event logging and synchronization
- Remote firmware updates via VAULT Central
- Anti-passback and interlock support
- Configurable door unlock schedules
- Emergency lockdown and unlock modes
- Available in 1-door and 2-door configurations
- Dual-door model supports mantrap and interlock
Spesifikasi
| Item | Detail |
|---|---|
| Card Capacity | 70k (expansible to 150k) |
| Event Buffer Capacity | 40k (expansible to 80k) |
| I/O | 12 in / 2 out |
| Card Protocols | Wiegand 26, 34 bits. Supports HID cards and other personalized formats |
| Schedule Capacity | 50, with 3 daily intervals |
| Time Zones | 99 |
| Access Levels | 999 |
| Holidays | 50 |
| Encryption | AES-128 (Optional) |
| Tamper Detection | |
| Fire Alarm Integration | |
| Built-in Web Server | |
| Network Protocols | TCP/IP, ARP, WEB |
| Communication | TCP/IP 10/100 Mbps |
| Memory | EEPROM and Flash |
| Input Voltage | 13.6 ~ 14.2 VDC |
| Backup Battery | 7AH / 12 VCC |
| Auxiliary Power Output | Electronic power source set to 12 VCC for readers, locks and other devices |
| Board Dimensions | 137 x 117 mm |
| Operating Temperature | 0 ~ 60º |
| Humidity | 0 ~ 95% without condensation |
Download
Belum ada brosur/file unduhan untuk produk ini. Hubungi kami bila Anda membutuhkan dokumen teknis.
